Breakthrough in Ultra-Thin Transistor Technology Could Advance Semiconductor Innovation

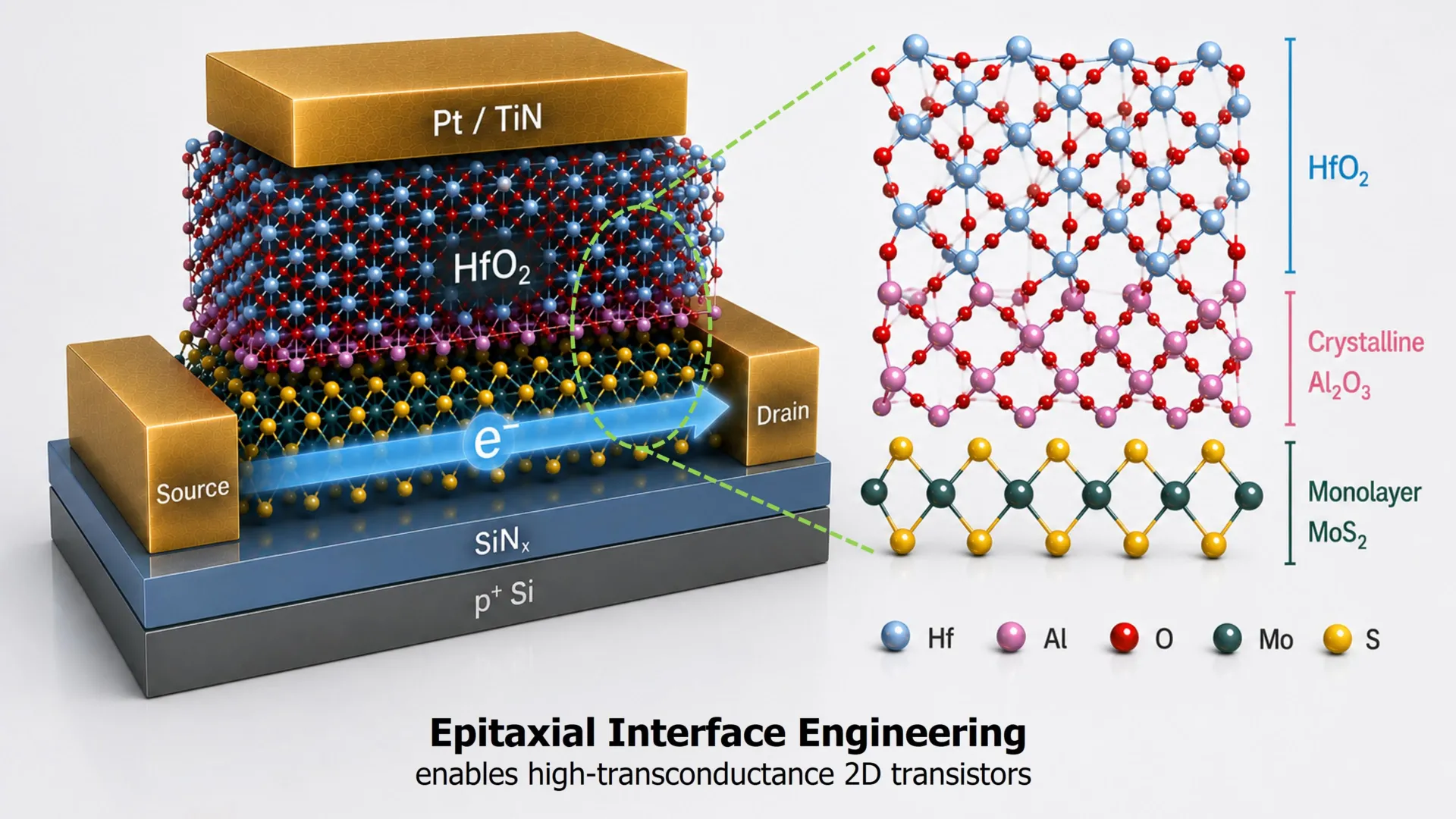

Researchers have achieved a significant milestone in semiconductor technology by developing a 0.42-nanometer transistor using epitaxial interface engineering. This advancement, detailed in a study published in *Nature Electronics*, addresses longstanding challenges in scaling down transistors while maintaining performance and stability. The breakthrough involves creating ultra-thin layers of molybdenum disulfide (MoS₂) with precise atomic alignment, enabling efficient electron flow and reducing energy consumption. By leveraging epitaxial growth techniques, scientists have mitigated issues like electrical resistance and heat dissipation that typically hinder sub-10nm transistor designs. This innovation could pave the way for next-generation electronics, including faster processors, lower-power devices, and advanced AI hardware. The collaborative effort involved institutions such as National Yang Ming Chiao Tung University and international research teams, highlighting the global impact of semiconductor advancements. While challenges remain in mass production and integration into existing manufacturing processes, this development marks a critical step toward overcoming physical limitations in silicon-based technology. The implications extend beyond computing, potentially revolutionizing fields like telecommunications, IoT devices, and quantum computing by enabling smaller, more efficient components. This research underscores the importance of material science innovation in driving technological progress.
